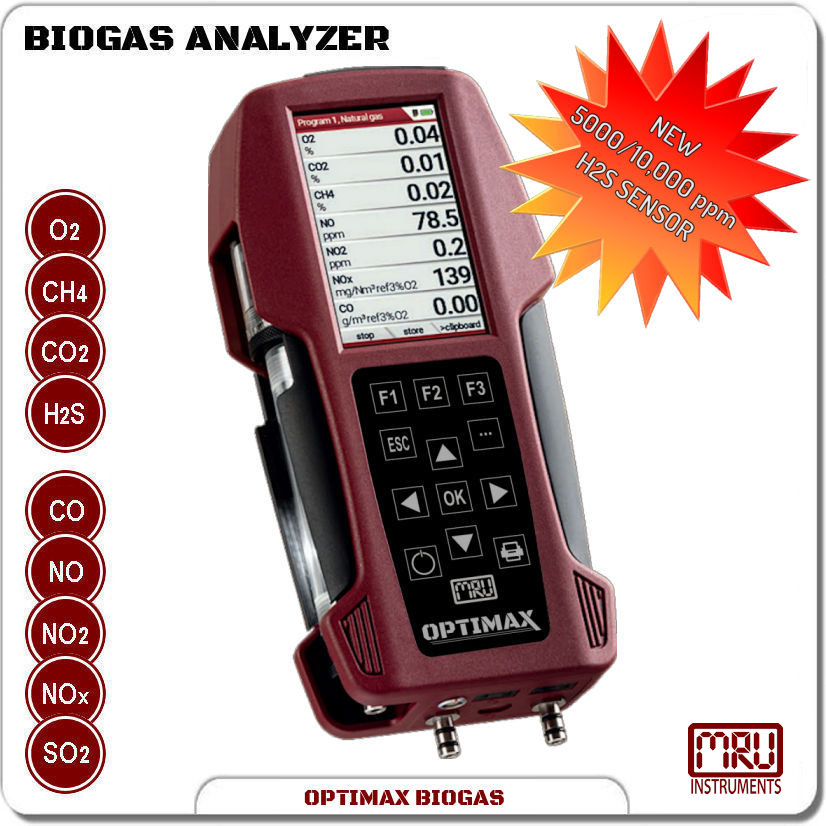

OPTIMAX BIOGAS Analyzer NEW H2S
OPTIMAX Analyzer Ports
OPTIMAX Analyzer BT

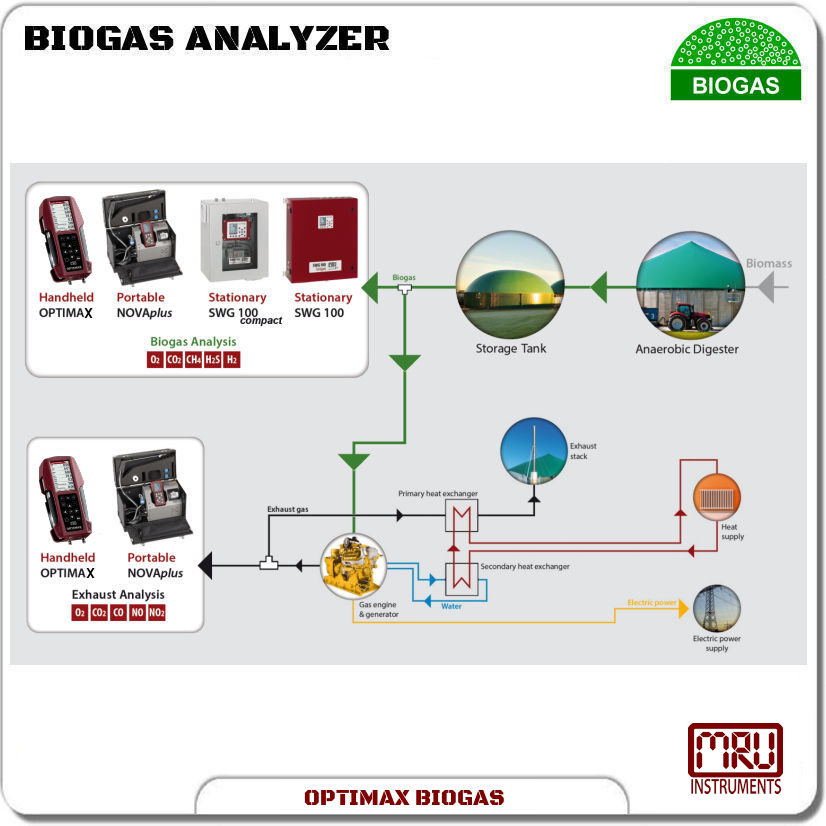

OPTIMAX BIOGAS Application

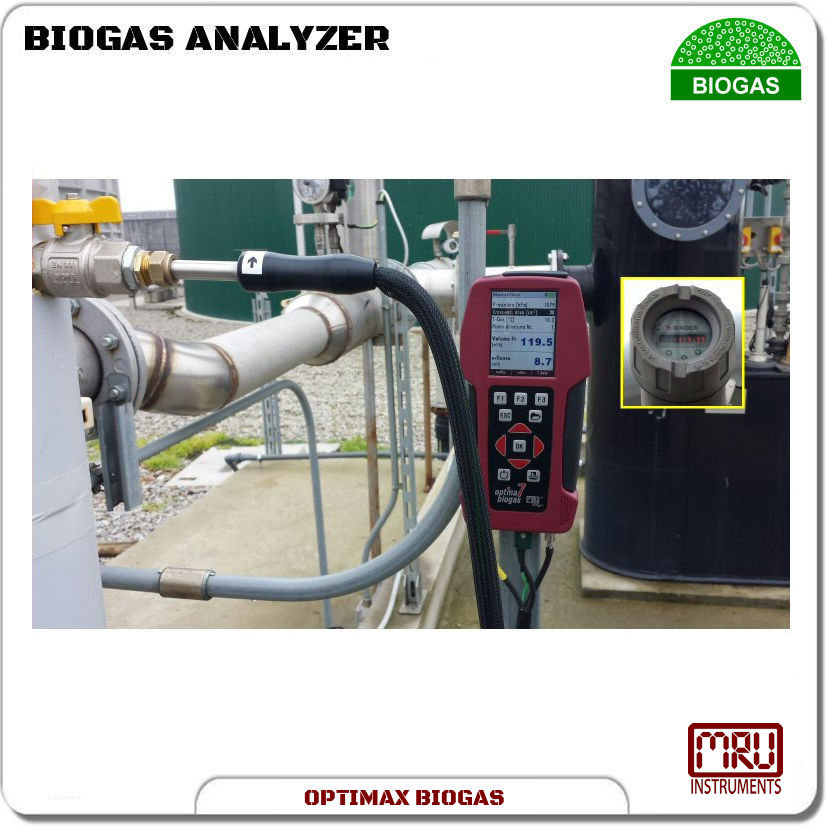

OPTIMAX BIOGAS Flow
OPTIMAX BIOGAS NESHAP 01

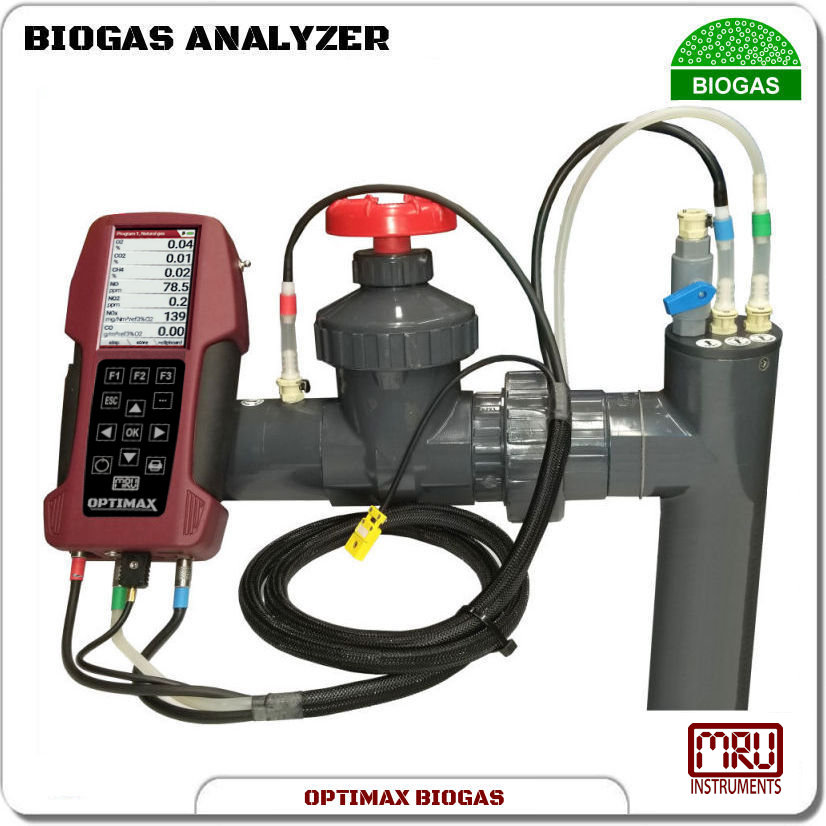

OPTIMAX BIOGAS Well head
OPTIMAX BIOGAS NESHAP 02

OPTIMAX Biogas – Portable Gas Analyzer

$0.00

OPTIMAX BIOGAS Analyzer NEW H2S
OPTIMAX Analyzer Ports
OPTIMAX Analyzer BT
OPTIMAX BIOGAS Application
OPTIMAX BIOGAS Flow
OPTIMAX BIOGAS NESHAP 01
OPTIMAX BIOGAS Well head
OPTIMAX BIOGAS NESHAP 02
Unleash the full potential of your biogas operations with our highly versatile, dependable analyzer
  • For fast biogas & emissions analysis at biogas, bio-methane and landfill sites
  • Biogas measurement: CH4, CO2, O2, H2S
  • Exhaust gas measurement: O2, CO2, CO, NO, NO2
  • Ambient air measurement: CH4 (LEL), H2S
[owp_zones]
[ywfbt_form]
Add to Inquiry List
Download Light Version
[custom_button]

Description



BIOGAS ANALYZER
#410074US		 BIOGAS ANALYZER
#410074USC		 BIOGAS ANALYZER
#410074US2		 BIOGAS ANALYZER
#410074US2C		 LANDFILL GAS
ANALYZER
#420075US2		 LANDFILL GAS
ANALYZER
#420075US3		 BIOGAS & ENGINE
EXHAUST GAS ANALYZER
#420076US1		 BIOGAS & ENGINE
EXHAUST GAS ANALYZER
#420076US2
Bluetooth ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅
O2 – Oxygen ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
CO2 – Carbon dioxide ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
CH4 – Methane ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
H2S – Hydrogen sulfide ✅ ✅ ❌ ❌ ✅ ❌ ✅ ❌
CO – Carbon monoxide ❌ ❌ ❌ ❌ ❌ ❌ ✅ ✅
NO – Nitric oxide ❌ ❌ ❌ ❌ ❌ ❌ ✅ ✅
NO2 – Nitrogen Dioxide ❌ ❌ ❌ ❌ ❌ ❌ ✅ ✅
Biogas pressure ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Battery charger ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
16′ sampling line ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Transport Case standard ❌ ✅ ❌ ✅ ❌ ✅ ✅ ✅
Transport Case large ❌ ❌ ❌ ❌ ✅ ❌ ❌ ❌
Shoulder strap for analyzer ❌ ❌ ❌ ❌ ✅ ✅ ✅ ✅
AUX port ❌ ❌ ❌ ❌ ✅ ❌ ❌ ❌
HC sniffer probe ❌ ❌ ❌ ❌ ✅ ❌ ❌ ❌
HC sensor ❌ ❌ ❌ ❌ ✅ ❌ ❌ ❌
Gas flow velocity measurement ❌ ❌ ❌ ❌ ✅ ✅ ❌ ❌
US Landfill Gas Probe ❌ ❌ ❌ ❌ ✅ ✅ ❌ ❌
Type K Thermocouple; Coiled cable, 6″ insertion ❌ ❌ ❌ ❌ ✅ ✅ ❌ ❌
Auto data logging function ❌ ❌ ❌ ❌ ✅ ❌ ✅ ✅
Spare part set ❌ ❌ ❌ ❌ ✅ ✅ ❌ ❌
Special LFG Firmware ❌ ❌ ❌ ❌ ✅ ✅ ❌ ❌
Combustion calculations ❌ ❌ ❌ ❌ ❌ ❌ ✅ ✅
Combustion sampling line ❌ ❌ ❌ ❌ ❌ ❌ ✅ ✅
Combustion gas probe ❌ ❌ ❌ ❌ ❌ ❌ ✅ ✅

Features:

  • The most powerful handheld biogas analyzer
  • Ideally suited for landfills, digesters plus waste to energy engine tuning
  • Simple operation
  • Compact & Rugged
  • Easy Data Handling
  • Low ownership cost
  • NESHAP conform – CO monitoring in landfill gas wells

Benefits:

  • Make your biogas process more cost-effective.
  • Get the data to show your organization cares about the environment.

Applications:

Bio Gas / Landfill / CHP, Biogas / Landfill / CHP, CH4, CO, CO2 Measured, H2, H2S, NO, NO2, NOx, O2

Part Numbers:

  • 410074US
  • 410074USC
  • 410074US2
  • 410074US2C
  • 420075US2
  • 420075US3
  • 420076US1
  • 420076US2

Additional information

Weight 1.7 lbs
Optimax

420074US – Optimax Biogas Analyzer, 420074USC – Bio Gas Anaylzer with 02, CO2, CH4 & H2S & Transport case, 420074US2 – OPTIMAX BIOGAS ANALYZER – WITHOUT H2S measurement, 420074US2C – Bio Gas Anaylzer with 02, CO2, CH4 & Transport CASE, without H2S, 420075US2 – OPTIMAX LANDFILL GAS ANALYZER (SET), 420075US3 – OPTIMAX LANDFILL GAS ANALYZER (SET), 420076US1 – OPTIMAX BIOGAS & ENGINE EXHAUST GAS ANALYZER WITH, 420076US2 – OPTIMAX BIOGAS & ENGINE EXHAUST GAS ANALYZER WITHOUT H2S measurement
